VU003 – Component2RGB – PCB Set

Name: VU003 - Component2RGB - PCB Set
SKU: VU003PCB
Price: 20.00 EUR
Availability: OutOfStock

20,00€ (ex. VAT) 24,00€ (inc. VAT)

Out of stock

SKU: VU003PCB Category: DIY

Description
Additional information

Description

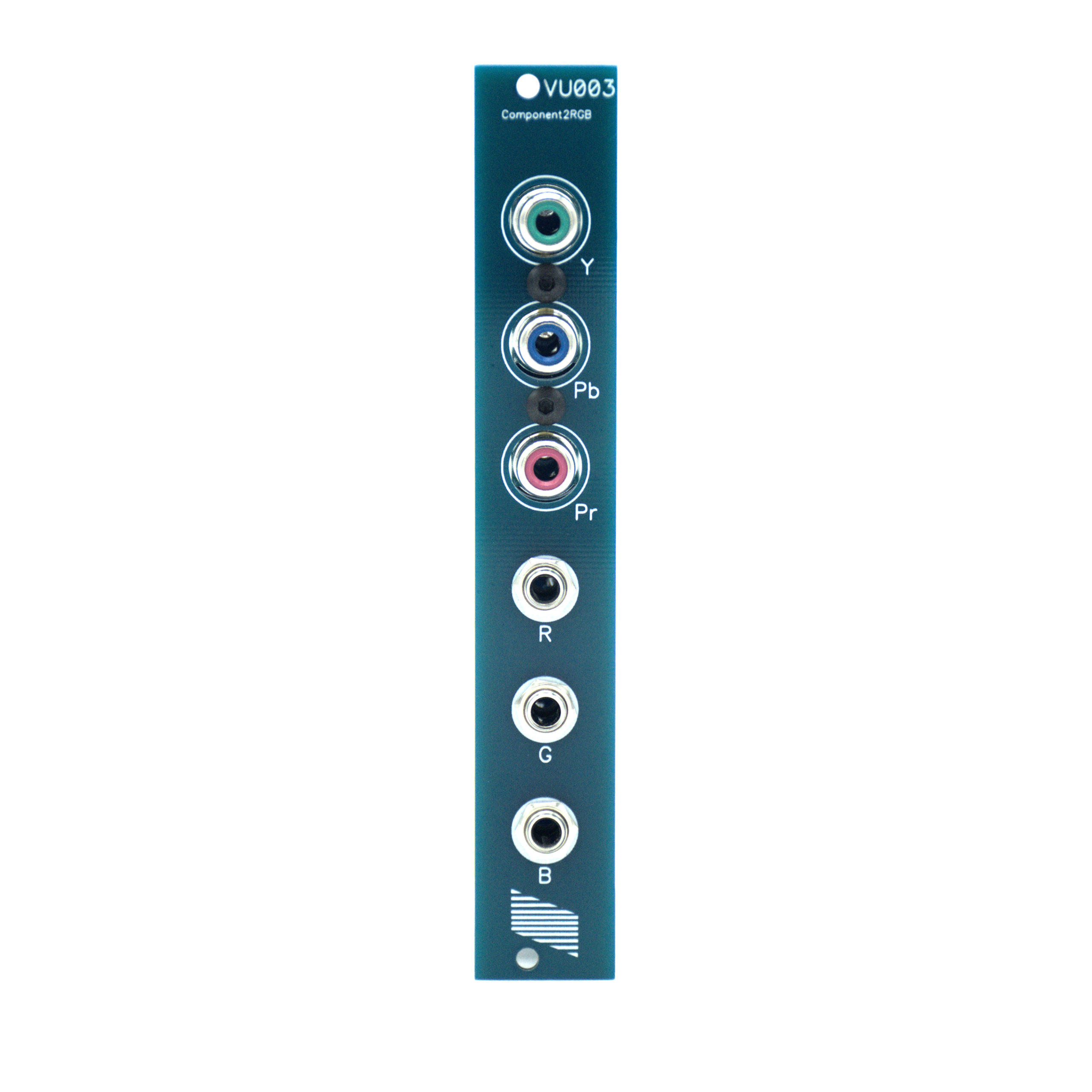

Component/YPbPr to 1V RGB colorspace converter, to process a component video source into a video system.
Only work with interlaced SD component.

Inputs: 0-700mV YPbPr, 75 ohms, RCA
Outputs: 0-1V RGB, 499 ohms, jack

PCB Set: includes Main/Control/Power/Panel PCBs.

– 4HP
– 28mA +12V
– 16mA -12V
– 0mA +5V
– 50mm deep
