VU008 – Dual Ramp Phase Shifter – PCB Set

Electronic tapestries, WIP signal generator
#videoart #videosynthesis #analogvideo #eurorack #syntonie

I`m in a book!
Feeling very grateful to be featured in intermedialefestival Video Syntezy 3 with a lot of friends, new and old.
.
.
.
.
.

#intermedialefestival #videosyntezy3 #videoart #experimentalmediaart #foxveil
#foxfelt #foxveil #foxinghour #foxrect #foxgamma #lzxdwo3 #vu009 #vu008 #lzxstairs #lzxfkg3 #bsobajascillator #prototype #videosynth #modular #eurorack #videoart #analog

Combines is now available, it is in stock and ready to ship on Syntonie website, and some units will be on their way to retailers soon! Demo video is up on Youtube (link in bio)

Combines is a triple analog combiner, aimed at combining two signals in various ways.

Each of the three channels features:

- AVG: average of the two inputs, (A+B)/2
- DIFF: difference of the two inputs, ((A-B)/2)+0.5)
- MIN: minimum of the two inputs, min(A, B)
- MAX: maximum of the two inputs, max(A, B)
- XOR: absolute of the difference of the two inputs, abs(A-B)
- MIX: mix of three of the above, scaled to 1V, different on each of the three channels
CH1: (AVG+DIFF+MIN)/3
CH2: (AVG+MIN+XOR)/3
CH3: (AVG+DIFF+XOR)/3

As the front panel suggests, Combines can be used to combine a horizontal and vertical triangle signals (like rectified ramps or oscillators), resulting in 2D shapes, represented on the outputs. Of course, the inputs are not limited to triangle waves, as any signals can be combined together, such as different wave shapes, as well as 2D shapes to create even more complex shapes or an external video signal.

It features 3 channels to allow for RGB processing, however the channels can be chained together as well, increasing the complexity of the resulting output.

Specs:

- 8HP
- 125mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep

.
. shift;
. phase in refresh…
.
.
.
.
.
.
.
.
. #lzx #lzxindustries #analog #videoart #videosynth #videosynthesis #crt #sonypvm #sonytrinitron #syntonie #htpsyntonie #vu008 #glitch #glitchart #vaporwave #dreampunk #diy #diyvideosynth

Matrice is now available, it is in stock and ready to ship on Syntonie website, and some units will be on their way to retailers soon! Demo video is up on Youtube (link in bio)

Matrice is a 1x3 matrix mixer with its outputs normalized to three VCAs.

Used in a RGB processing context, just before the RGB encoder, the matrix section allows to reach a great variety of color palettes, especially when using matte/keyed shapes or posterizing.

The VCAs essentially works as a fade to black, allowing to tame the colors, which is especially useful after the matrix, since it can outputs signals up to 3V, as well as inverting them, that can result in a really bright composition.

Specs:

- 16HP
- 310mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep

A couple simulations of htp.syntonie `s new VU008 Voltage Controlled Dual Ramp Phase Shifter. Do not sleep on this module! This tool fills a long needed animation and wave shaping hole in DIY video.
#vu008 #syntonie #videosynth

Next Friday night, the 17th of March, I`ll be creating some #audioreactive #LiveVisuals via my #videosynth at the #fundraiser event for the #FreeShop at the #Supermolly in #Berlin`s #friedrichshain. Come by & check out the three live acts as well as the DJ lined up to entertain the guests 🙂

Music in the 1st clip by anna_maria_van_reusel & her partner-in-crime, guitarist Dennis S. who`ve just released a new album under the band name Silver Galaxy on the musicelsewhere label 🙂 & we`ll play together at the antennafestival.be in `#ghentbelgium on Friday the 24th 😁

With modules by lzxindustries, htp.syntonie, fox_burroughs & #VisibleSignals. These new video clips heavily leaned on my Syntonie #VU008 #SineShaper module, thanks Bastien for the tips earlier this afternoon, they really really helped 🙂 & FoxingHour`s Veil Priority Mixer 🔥🎦

#videosynthesis #videoart #livevisuals #livemusic

Three new video synth modules from the excellent Syntonie are now available!

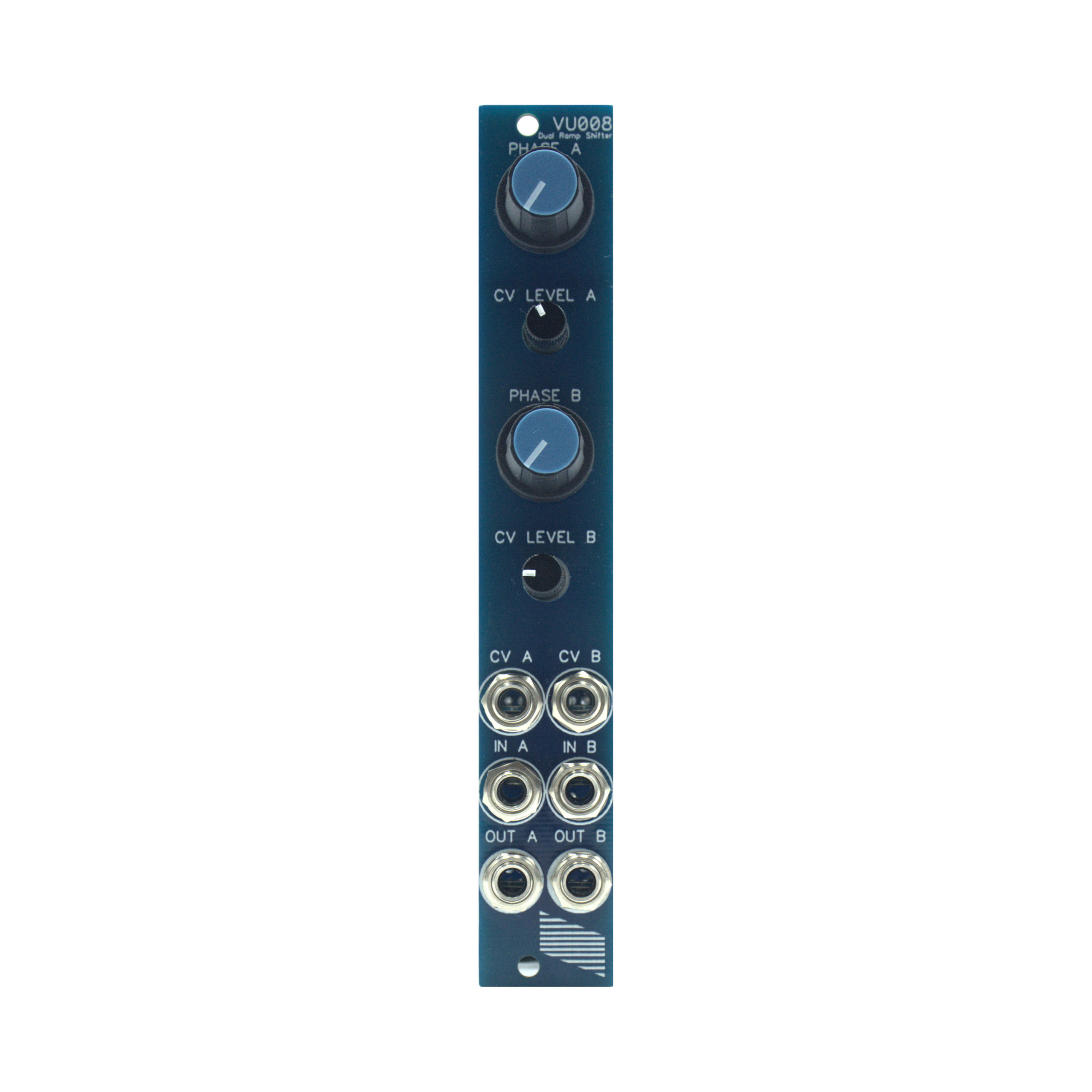

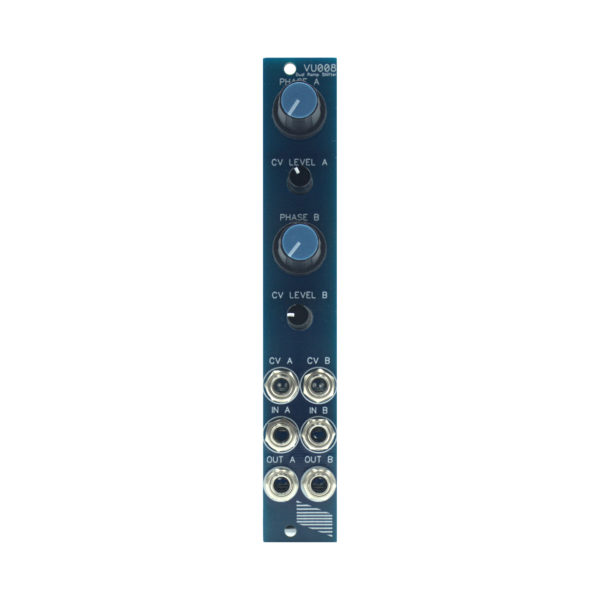

- VU008 is a dual ramp phase shifter, based on B. Hutchins Multiphase Waveform Animator.
It phase shifts ramp waveforms, which result in an horizontal/vertical displacement of the ramp and will waveshape other periodic waveforms.
Interesting to add animation to ramp based shape generation by means of slow modulation of the shift, audio/video rate modulation results in complex patterns generation.

- VU009 is a video rate sawtooth oscillator, based on P. Baljeu Castle VCO and T. Henry X4046 VCO. It features FM input and voltage offset of the output waveform.
Comes in two versions: 14pin sync and RCA sync by the means of two different power/sync boards.

- VU010 is a triple 2:1 mixer, each mixer sums two 1V signals into another 1V signal. Useful for H and V mixing or to mix two RGB triplets.
1st mixer output is normalised to 2nd mixer input, 2nd mixer output normalised to 3rd mixer input, allowing to sum 4 signals with different weigthing of each signal (since each mixer divide the signals by 2 in order to produce a 1V output).
By plugging a single signal to the input of the 1st mixer, output of the 1st mixer will produce a copy of the signal divided by 2, 2nd mixer output divided by 4 and 3rd mixer output divided by 8.

Thanks again to Lorenzo Ferronato / loobabalooba for the amazing documentation design!!

Documentation is up on Github, and demo video for VU008/VU009 uploaded to Youtube, as well as a demo of how to use CBV and VU together, while waiting for a sync generator/encoder solution to be available.

#videoart #videosynthesis #analogvideo #vu008 #vu009 #vu010 #DIY #eurorack #syntonie

#videosynth erogenous_tones #structure + lzxindustries #lzxvisualcortex + #lzxstaircase + davejonesvideo #mvip + htp.syntonie #vu008 + doepfer_musikelektronik #A-143-4

#audio is korgofficial #monotribe + #volcafm2 + moogsynthesizers #DFAM passive mixed into a rolandglobal #mc707 and recorded by USB output.

Synthesis patch made with Rampes, Combines, Seuils, Matrice and Sortie.

Various ramps, mirrored ramps and 2D shapes from Rampes are combined together using the three channels of Combines, outputs of Combines going to Seuils signal inputs and CV inputs to generate hard shapes/mattes, which are later processed through Matrice for color tuning using its matrix mixer, and its triple VCA to cut through the colors/creating negative space, finally outputs of Matrice are encoded with Sortie in 720p60.

#videoart #analogvideo #videosynthesis #eurorack #syntonie

htp.syntonie #VU008 + lzxindustries #lzxvisualcortex + #lzxvidiot + #lzxstaircase

Retour en image sur notre performance avec @_les_hauts_ au @100ecs pour @quasi.stellar.objects

📸: @mariannegirardet

#audiosynthesis #videosynthesis #modularsynth #eurorack #videoart

Stills are cool as well 📷

Patched with Rampes, Cadrans, Seuils, Isohélie, Sortie and three (soon to be announced) prototypes, in 1080 resolution.

#videosynthesis #videoart #analogvideo #eurorack #syntonie
