Description

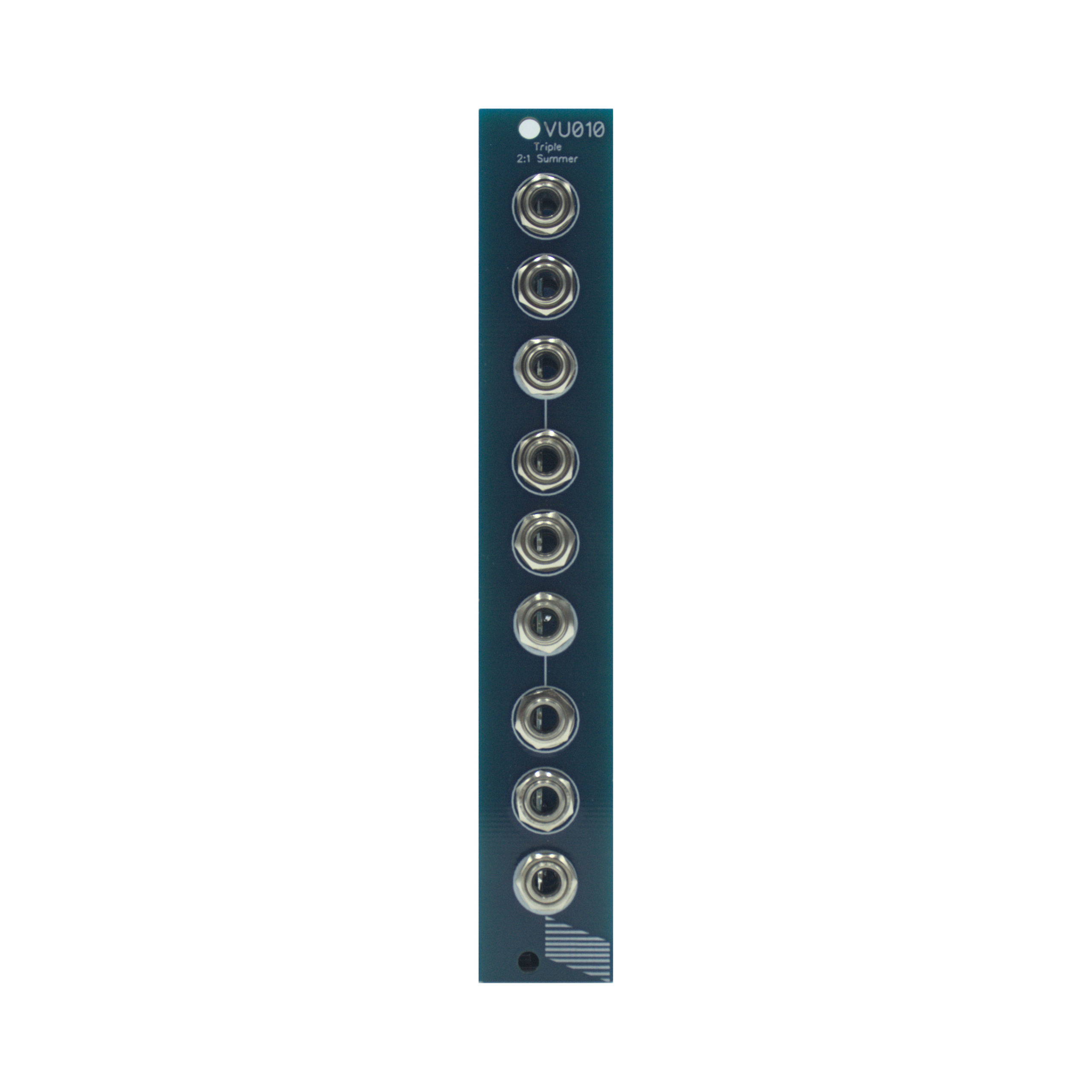

Triple, 2-way mixer, allowing to sum two 0-1V signals into one 0-1V output.
Can be used as 3 independant 2-way mixers to create shapes out of H and V signals, or as a 4-input mixer by means of jack normalisation (output of the first mixer is mixed with the second one, output of the second one mixed with the third one).
PCB Set: includes Main/Control/Panel PCBs.
– 4 HP
– 25mA +12V
– 25mA -12V
– 0 mA +5V
– 40mm deep
Good news for all you video synthesists! We have the latest Modules from htp.syntonie available and ready to ship! Have a look! They are available assembled or as DIY Kits for your soldering pleasure!
.
.
.
.
.
#syntonie #videosynth #videosynthesizer #visualarts #movingpictures #lzxindustries #visualize #vienna #analogvideo #analogvideoart #visualtools #vu008 #vu009 #vu010
Jan 29
Combines is now available, it is in stock and ready to ship on Syntonie website, and some units will be on their way to retailers soon! Demo video is up on Youtube (link in bio)
Combines is a triple analog combiner, aimed at combining two signals in various ways.
Each of the three channels features:
- AVG: average of the two inputs, (A+B)/2
- DIFF: difference of the two inputs, ((A-B)/2)+0.5)
- MIN: minimum of the two inputs, min(A, B)
- MAX: maximum of the two inputs, max(A, B)
- XOR: absolute of the difference of the two inputs, abs(A-B)
- MIX: mix of three of the above, scaled to 1V, different on each of the three channels
CH1: (AVG+DIFF+MIN)/3
CH2: (AVG+MIN+XOR)/3
CH3: (AVG+DIFF+XOR)/3
As the front panel suggests, Combines can be used to combine a horizontal and vertical triangle signals (like rectified ramps or oscillators), resulting in 2D shapes, represented on the outputs. Of course, the inputs are not limited to triangle waves, as any signals can be combined together, such as different wave shapes, as well as 2D shapes to create even more complex shapes or an external video signal.
It features 3 channels to allow for RGB processing, however the channels can be chained together as well, increasing the complexity of the resulting output.
Specs:
- 8HP
- 125mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep
Apr 16
It`s been a while since I`ve posted which is silly of me because I was creating but various things were happening & required time, energy & attention.
Regardless, here`s a couple of 1 min vids making use of the Visible Signals #ONEofFOUR & two #GainBrain modules. But what has really made my day is getting to use the soon-to-be-released #SYNTONIE #VU009 VCO & the #VU010 Mixer & both play their parts in this patch. As do the lzxindustries #LZXDoorway, #LZXStaircase, #LZXnavigator, #LZXvisualCortex, 2x #CastleVCO & the #LZXcadetVCO. Not to forget a very useful triple LFO module from Martijn at the #ReverseLandfill HQ.
Any questions about the patch, please ask in the comments below.
#videoart #videosynth #Videosynthesizer #VideoSynthModules #eurorackmodular #EurorackVisuals #LZX
Dec 11
Matrice is now available, it is in stock and ready to ship on Syntonie website, and some units will be on their way to retailers soon! Demo video is up on Youtube (link in bio)
Matrice is a 1x3 matrix mixer with its outputs normalized to three VCAs.
Used in a RGB processing context, just before the RGB encoder, the matrix section allows to reach a great variety of color palettes, especially when using matte/keyed shapes or posterizing.
The VCAs essentially works as a fade to black, allowing to tame the colors, which is especially useful after the matrix, since it can outputs signals up to 3V, as well as inverting them, that can result in a really bright composition.
Specs:
- 16HP
- 310mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep
Apr 16
Three new video synth modules from the excellent Syntonie are now available!
- VU008 is a dual ramp phase shifter, based on B. Hutchins Multiphase Waveform Animator.
It phase shifts ramp waveforms, which result in an horizontal/vertical displacement of the ramp and will waveshape other periodic waveforms.
Interesting to add animation to ramp based shape generation by means of slow modulation of the shift, audio/video rate modulation results in complex patterns generation.
- VU009 is a video rate sawtooth oscillator, based on P. Baljeu Castle VCO and T. Henry X4046 VCO. It features FM input and voltage offset of the output waveform.
Comes in two versions: 14pin sync and RCA sync by the means of two different power/sync boards.
- VU010 is a triple 2:1 mixer, each mixer sums two 1V signals into another 1V signal. Useful for H and V mixing or to mix two RGB triplets.
1st mixer output is normalised to 2nd mixer input, 2nd mixer output normalised to 3rd mixer input, allowing to sum 4 signals with different weigthing of each signal (since each mixer divide the signals by 2 in order to produce a 1V output).
By plugging a single signal to the input of the 1st mixer, output of the 1st mixer will produce a copy of the signal divided by 2, 2nd mixer output divided by 4 and 3rd mixer output divided by 8.
Thanks again to Lorenzo Ferronato / loobabalooba for the amazing documentation design!!
Documentation is up on Github, and demo video for VU008/VU009 uploaded to Youtube, as well as a demo of how to use CBV and VU together, while waiting for a sync generator/encoder solution to be available.
