Description

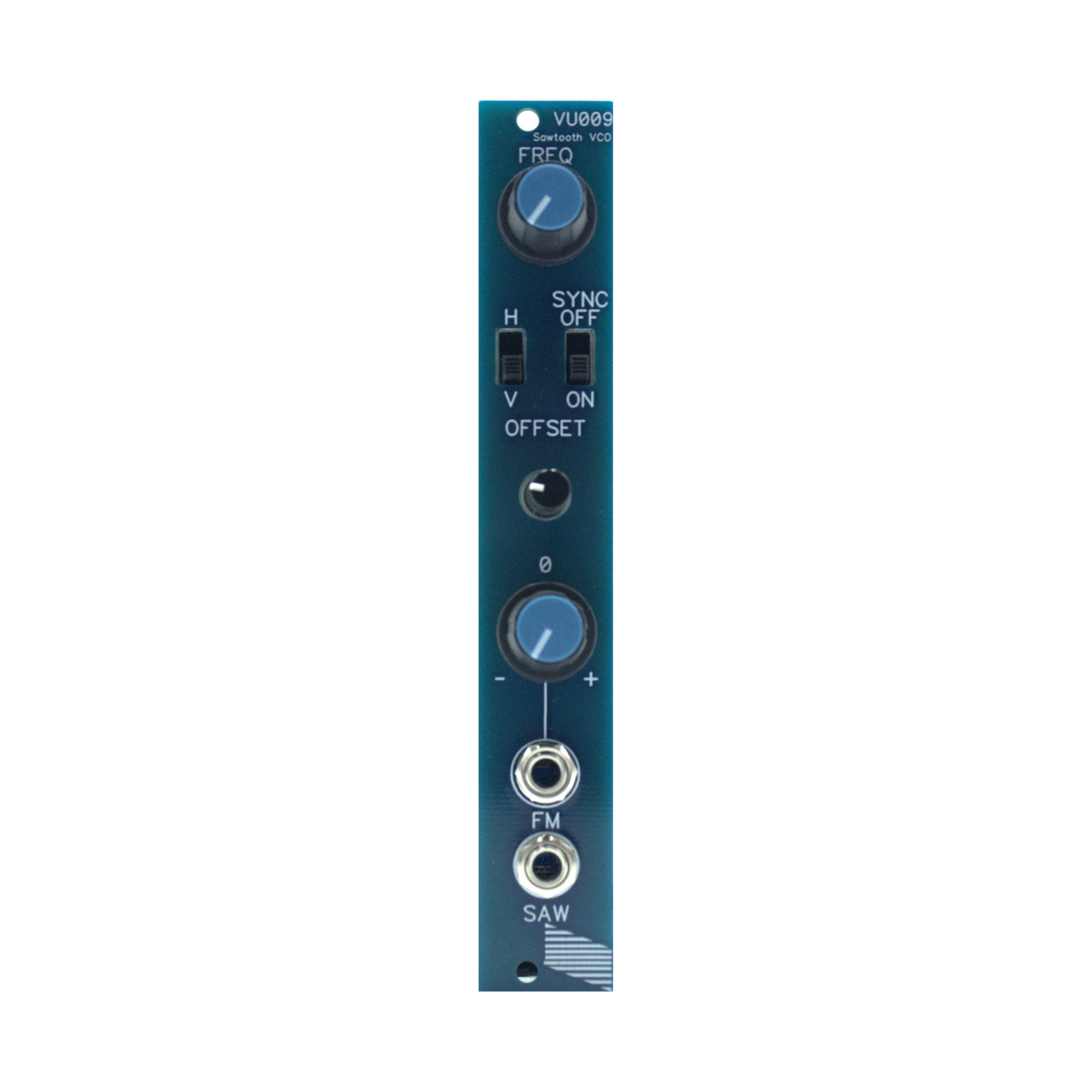

0-1V sawtooth oscillator featuring FM input with attenuverter, H/V and sync on/off switch.
Comes with either 14pin sync or RCA sync by the use of two different power boards.
Input : 0-1V, 499R, jack
Output : 0-1V, 499R, jack
PCB Set: includes Main/Control/Power/Panel PCBs, RCA version comes with pre-soldered LMH1980.
– 4 HP
– 35mA +12V
– 20mA -12V
– 0 mA +5V
– 55mm deep
LZX Video synthesizer patchin while listening to Don Caballero classic “The Peter Criss Jazz”
.
Mainly htp.syntonie VU009 oscillator vs. the LZX Memory Palace and Staircase
.
#lzxindustries #videosynthesizer #syntonie #lzxmemorypalace #vu009 #avart #audiovisual #videosynth #audiovisualart #analogvideoart #videofeedback #eurorack #modularsynth #modularsynthesizer #videoart #generative #generativeart #lzx #braindance #psychedelicart #geometricart #videosynthesis #opart #opticalillusion #moire #selfperception #visualdistortion #parallaxerror #hallucination
Aug 1
While I enjoy patching synthesis in 720p60 for the increased resolution and frame rate in comparison to SD (PAL/NTSC), a good in between is ED (for enhanced definition), here 576p50.
It keeps the SD resolution and look, with those nice jagged/aliased edges, while benefiting from being progressive rather than interlaced, giving that smooth motion without requiring deinterlacing.
However, not a lot of devices can support ED standards, here a Retrotink 5X is used to convert Component 576p50 to HDMI 1080p50 for capture.
Modules used are Rampes, Animate, Seuils, Isohélie, and a couple work in progress 😉
#videoart #videosynthesis #analogvideo #eurorack #syntonie
Feb 4
Three new video synth modules from the excellent Syntonie are now available!
- VU008 is a dual ramp phase shifter, based on B. Hutchins Multiphase Waveform Animator.
It phase shifts ramp waveforms, which result in an horizontal/vertical displacement of the ramp and will waveshape other periodic waveforms.
Interesting to add animation to ramp based shape generation by means of slow modulation of the shift, audio/video rate modulation results in complex patterns generation.
- VU009 is a video rate sawtooth oscillator, based on P. Baljeu Castle VCO and T. Henry X4046 VCO. It features FM input and voltage offset of the output waveform.
Comes in two versions: 14pin sync and RCA sync by the means of two different power/sync boards.
- VU010 is a triple 2:1 mixer, each mixer sums two 1V signals into another 1V signal. Useful for H and V mixing or to mix two RGB triplets.
1st mixer output is normalised to 2nd mixer input, 2nd mixer output normalised to 3rd mixer input, allowing to sum 4 signals with different weigthing of each signal (since each mixer divide the signals by 2 in order to produce a 1V output).
By plugging a single signal to the input of the 1st mixer, output of the 1st mixer will produce a copy of the signal divided by 2, 2nd mixer output divided by 4 and 3rd mixer output divided by 8.
Thanks again to Lorenzo Ferronato / loobabalooba for the amazing documentation design!!
Documentation is up on Github, and demo video for VU008/VU009 uploaded to Youtube, as well as a demo of how to use CBV and VU together, while waiting for a sync generator/encoder solution to be available.
#videoart #videosynthesis #analogvideo #vu008 #vu009 #vu010 #DIY #eurorack #syntonie
