Description

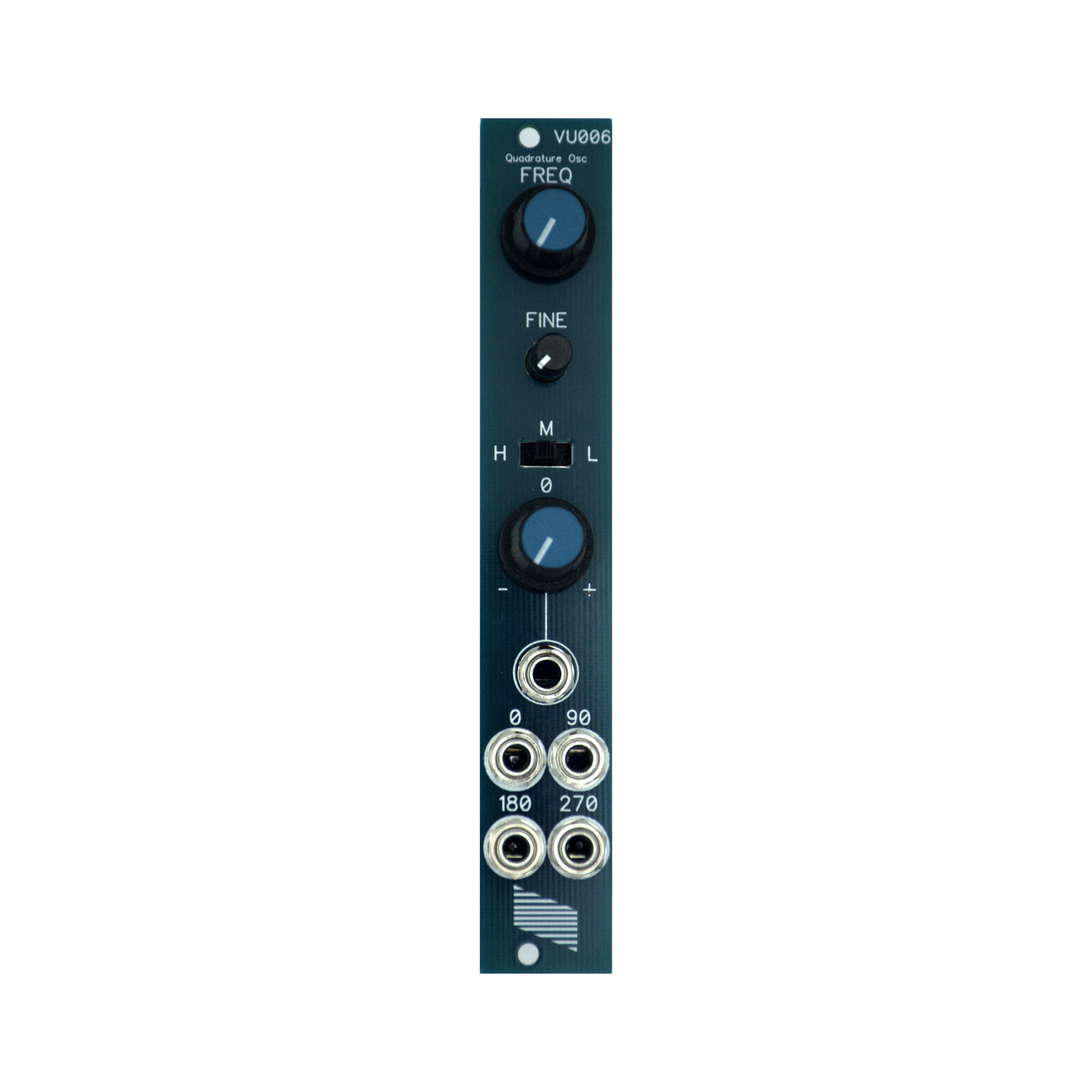

Low frequency to audio rate quadrature oscillator, outputting 4 sinewaves 90 degrees apart.
Based around two self-oscillating filter, it features a buffered frequency modulation input with attenuverter, a switch to cover 3 frequency ranges and fine tuning.
PCB Set: includes Control/Main/Power/Front panel pcbs with pre-soldered BCM857
– 4 HP
– 30mA +12V
– 28mA -12V
– 0 mA +5V
– 50mm deep
Sortie is now available! Sep 8 Synthesis patch made with Rampes, Animate, Cadrans, Solaire, Seuils, ReverseLandfill Matrix Mixer and Sortie, recorded in Component 720p60. Sep 2 Had an amazing time in Oregon! Aug 28 Haven`t had much time to see actual human people lately so I`ve used some of my few spare moments to build some new friends. Oct 19 Made it back from the mountains ⛰️ Jul 24 Here`s a few video clips of a new patch I`ve been having fun with this week. It`s #minimal & fun. Jun 26 Going offline for the next week, trading video synthesis for photosynthesis in the French Alps ☀️ Jul 13 Whichcraft. Mar 6 First round of STVC bundles have been shipped! A couple more are available still! Jul 10 CBV001 is now available in standalone version, comes with a 3D printed enclosure, power supply adapter board and external wall wart. Jul 27 Introducing Système de Traitement de Vidéo Composite (STVC), a bundle that includes CBV001, Détail and Stable, making a really versatile Composite video processing system. Jul 7 Video synthesis speed patching #1 Jul 1 I’ve been asked about how Stable and Solaire looks when patched together, so here we are! Jun 25
Same size and features as VU007B, revamped UI for easier format selection/external format display, and DC power input.
Sortie (french for output) is a RGB to Composite/S-video/Component encoder and sync generator supporting SD and HD.
The internal standard is selected by the mean of a push button, with a dedicated LED indicator for each standard.
When an external video signal is present at the sync input of the module, the standard will be selected automatically and the external sync LED indicator will light up.
RCA sync I/O at the rear of the module.
Supports the following standards:
* 576i50 (PAL)
* 480i59.94 (NTSC)
* 576p50
* 480p59.94
* 720p50
* 720p59.94
* 720p60
* 1080i50
* 1080i59.94
* 1080i60
* 1080p23.98
* 1080p24
* 1080p25
* 1080p29.97
* 1080p30
Inputs:
- 0-1V RGB, 100k ohm, jack
- 0-700mV Sync in, 75 ohm, RCA (rear)
Outputs:
- 0-700mV YPbPr/CVBS, 75 ohm, RCA
- 0-700mV S-Video, 75 ohm, Mini Din-4
- 0-700mV Sync out, 75 ohm, RCA (rear)
Specs:
- 8HP
- 130mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep
Can be powered through standard Eurorack 16pin connector or DC barrel connector.
