Description

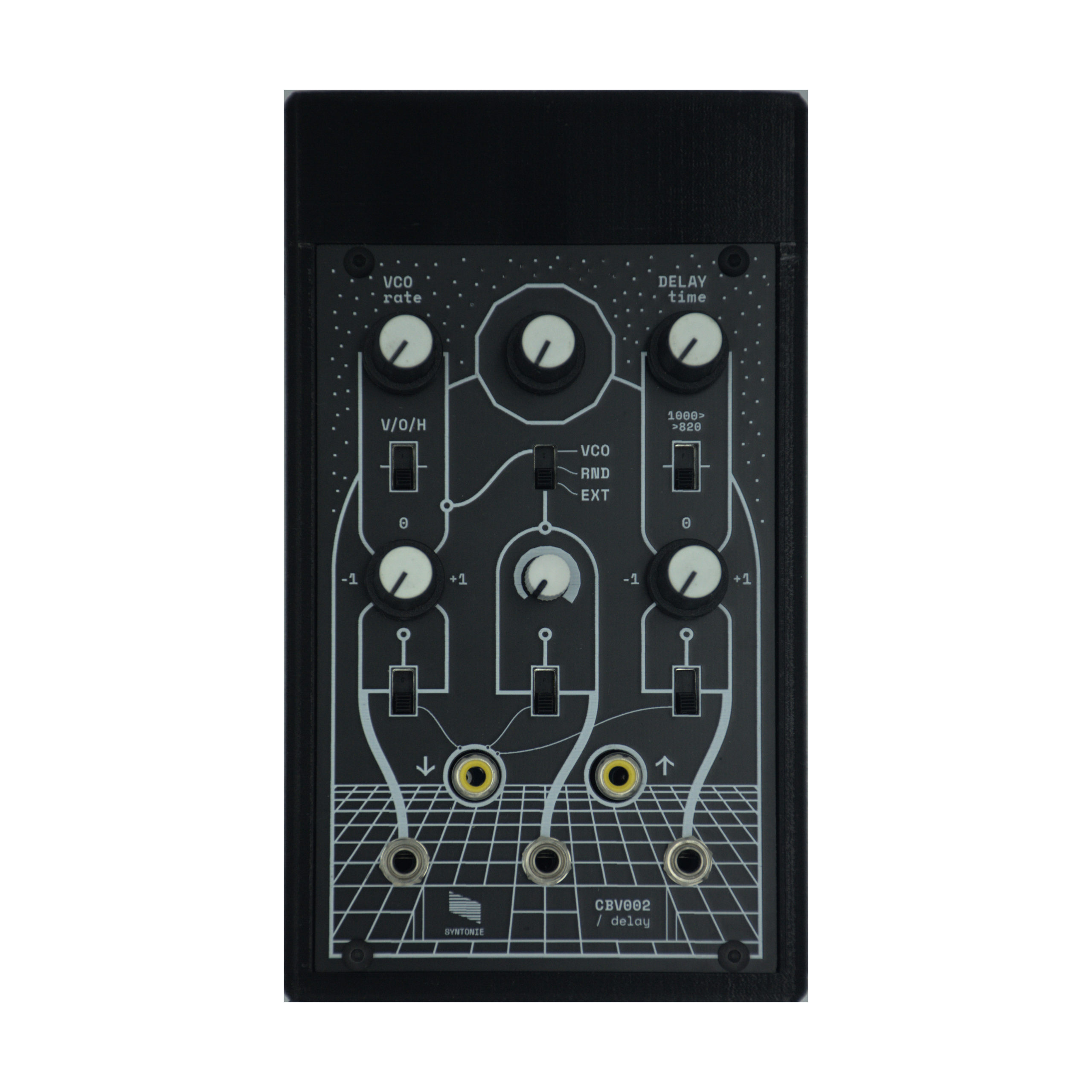

CBV002 is an eurorack adaptation of Discret11, which is based on an analog encryption system of the same name used by pay TV in the 90s.
It works by delaying the signal by a few hundreds of nanoseconds, resulting in an horizontal displacement and hue shift.
NTSC/PAL compatible
PCB Set: includes Main/Control/Panel PCBs as well as obsolete part (LM1881, TDA4565, CD4006).
– 16HP
– 120mA +12V
– 60mA -12V
– 0mA +5V
– 45mm deep
Made it back from the mountains ⛰️
As usual, pictures from the trip processed in analog, using CBV001, Détail and Stable (which are still available as a limited bundle).
Recorded in Composite PAL/576i50.
#analogvideo #analogglitch #glitchart #videoart #eurorack #syntonieCBV001 #syntoniestable #syntoniedetail #syntonie
Jul 24
Going offline for the next week, trading video synthesis for photosynthesis in the French Alps ☀️
Orders will start shipping again on July 21st, and I’ll catch up with emails and dm at the same time.
STVC bundles are running low, so if you were interested in getting one, don’t wait.
Keep patching and see you soon!
#analogvideo #videoart #videosynthesis #eurorack #syntonie
Jul 13
First round of STVC bundles have been shipped! A couple more are available still!
Here is a patch made with it, source video goes to Stable, then CBV001 and finally Détail, with luma-based modulation on Stable and Détail parameters.
Recorded in Composite NTSC 480i59.94
#analogvideo #videoart #glitchart #analogglitch #eurorack #syntoniecbv001 #syntoniedetail #syntoniestable
Jul 10
Introducing Système de Traitement de Vidéo Composite (STVC), a bundle that includes CBV001, Détail and Stable, making a really versatile Composite video processing system.
The bundle is offered at ~15% off, in other words, it’s a free CBV001 or some spare cash to get a case!
Limited to 10 bundles and for a month only. Available now on Syntonie webshop.
Case is not included, a @4ms_company POD 40X is used on the pictures.
(Merci @leon.neon.glow pour les belles photos!)
#analogvideo #videoart #glitchart #analoglitch #modularvideo #eurorack #syntonieCBV001 #syntoniedetail #syntoniestable #syntonie
Jul 7
Video synthesis speed patching #1
- Shapes/ramps from Rampes are sent to a 1st Cadrans set as crossfaders (white cables)
- Slow modulation from VHS Baja is going to 1st Cadrans CV inputs (purple cables)
- Outputs of 1st Cadrans going to Solaire for mixing/solarizing (green cables)
- Outputs of Solaire going to a 2nd Cadrans for final color balance/inversion/negative space (black cables)
- Outputs of 2nd Cadrans going to Sortie for RGB encoding to 720p60 Component (orange cables)
Video sped up 3 times, and capture is tilted 90°
#analogvideo #analogvideosynthesis #videosynthesis #videoart #eurorack #vhsbaja #syntonierampes #syntoniecadrans #syntoniesolaire #syntoniesortie #syntonie
Jul 1
I’ve been asked about how Stable and Solaire looks when patched together, so here we are!
Solaire is based around full wave rectifiers, which when applied to video, produces an effect known as solarization. It makes the picture brightness « fold on itself », and it is here used as modulation on Stable parameters.
In the second part of the video, the post-processor output of Stable is used instead of the pre-processor output, creating a feedback loop and Solaire having quite a high gain (up to 16 times), it produces a lot of noise (let’s see how it get through Instagram compression).
Recorded in Composite PAL/576i50.
#analogvideo #videoart #glitchart #analogglitch #analogvisuals #eurorack #syntoniestable #syntoniesolaire
Jun 25
Now using Isohélie as a processor for Détail self-modulation, yielding those « paint-by-number » kind of effects.
Recorded in Composite NTSC 480i59.94
Isohélie is currently out of stock on Syntonie website, a new batch is on the way. However, if you’re looking for one right now, there is probably some available at retailers.
#analogvideo #videoart #analogglitch #glitchart #eurorack #syntoniedetail #syntonieisohelie #syntonie
Jun 22
Luma keying is a good way to constrain effects to certain parts of the source image.
Here, Détail pre-filter output is connected to Seuils which generates hard keys out of it, with each channel of Seuils controlling each of the parameters of Détail.
Recorded in Composite NTSC 480i59.94.
Let me know in the comments if there is any module combinations you’re curious about!
#analogvideo #videoart #eurorack #analogglitch #glitchart #syntonie #syntoniedetail #syntonieseuils
Jun 19
Long time no sync!
Past month has been quite busy, been working on setting up a fixed video recording setup (finally), and here is the first recording made with it! (Need to work on the lighting still).
The now classic Détail and CBV001 combo, with CBV001 used to process the modulation going to Détail. Getting the best of CBV001 distorsion without worrying about loss of sync as Détail preserves it.
Recorded in Composite PAL 576i50.
Stock of Détail and CBV001 are low, so might be the right time to grab one!
#analogvideo #videoart #eurorack #analogglitch #glitchart #syntonie #cbv001 #syntoniedetail
Jun 16
Je viens faire du visuel pour l’Algorave samedi 24 mai à Grrrnd Zero, organisé par @ordinateurdanslatete
J’aurai pas d’ordi, bien que le synthétiseur modulaire est une sorte d’ordinateur analogique? 🤔
18h->06h
Prix conseillé +-8 euros
Grrrnd Zero
60 avenue de Bohlen
69120 Vaulx-en-Velin
Cash Only / Food and Merch
Line up :
c_robo_ afalfl gcode azertype bleuje neon_delice maeertt nesso bruno_gola dok kaamtar ungual marlen 2mo fronssons plot three_naugthi_bois syntonie lucky.juj jaxa nabir sara_adkins th4 bubobubobubo ralt144mi crash_server polymorphic_engine parvagues libre_&change_trio z0rg peregrine lbvp emilie_breslavetz
May 20
On my way to @superbooth_berlin can’t wait to talk about analog video non-stop for 3 days!
First picture is from last year booth, coming with a different setup this year, come check it out and play the video synth at booth W201!
#superbooth #eurorack #analogvideo #glitchart #videoart #videosynthesis #analogglitch #syntonie
May 6
Pictures of a recent trip to the South of France, processed with Détail.
Recorded in Composite NTSC 480i59.94
For the next couple weeks, I’ll be trading LED and LCD ligthing for true analog lighting (the sun). So check Syntonie website for the shipping schedule, which will get back to normal after Superbooth on May 14th.
#videoart #glitchart #analogglitch #analogvideo #analogprocessing #eurorack #syntoniedetail #syntonie
Apr 28
Update on standalone options for CBV001, Stable and Détail: the enclosures are now available separately on Syntonie webshop.
This is mostly to make it easier in terms of keeping things in stock, and so there’s no wait for a specific batch of standalone units to be put together (as long as modules and enclosures are in stock of course).
It can also be a way to offload your modular case by making the module standalone.
Pictures are Détail in its standalone incarnation.
(merci @leon.neon.glow pour les superbes photos!)
#videoart #glitchart #analogglitch #analogvideo #analogprocessing #eurorack #syntoniedetail #syntoniestable #syntonieCBV001 #syntonie
Apr 22
First round of Détail has shipped, thanks a lot for the support!
Note that Détail can be made standalone, the enclosure and power supply are now available as a separate listing on Syntonie webshop.
I’ll make a dedicated post about standalone options soon.
Captures above are Détail going into Stable, recorded in Composite PAL 576i50 with Analog to SDI + Video Assist.
Stable adds another layer to the effects Détail achieves like solarization, hue modulation, etc...
#videoart #glitchart #analogglitch #analogvideo #eurorack #syntoniedetail #syntoniestable #syntonie
Apr 19
Détail is now available through Syntonie website! Some units will be on their way to retailers soon as well.
Inspired by old school video detailers, it is based around a lowpass/highpass filter, which can either soften/blur or enhance/sharpen the incoming video signal. It outputs a fully compliant Composite/Component Y video signal, meaning that the effects it produces can be pushed to the extreme without requiring stabilisation (unlike most analog glitch video devices).
Demo video is up on Youtube (link in bio), and a more in-depth description is available on the webshop listing.
Specs:
- 12HP
- 200mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep
Can be powered through standard Eurorack 16pin connector or DC barrel connector.
#videoart #glitchart #analogglitch #analogvideo #eurorack #syntoniedetail #syntonie
Apr 16
On May 8th to 10th, Syntonie will be back at @superbooth_berlin (booth W201)!
Unveiling Détail: a new video processor, used to create the video above.
We’ll have the full Syntonie line up of video synthesis and processing modules for you to try as well!
Looking forward!
#analogglitch #glitchart #videosynthesis #videosynth #analogvideo #eurorack #superbooth #syntoniedetail #syntonie
Apr 10
Just came back from Berlin, remembered to take photos this time, here processed with CBV001, Stable and Détail, recorded in Composite PAL/576i50.
I had great time, it was nice to do visuals at @synthmuseumberlin for @robinburkeberlin audio performance, with an amazing opening act of @fl.o_flo!
Thanks to @schneidersladen and @cinema.av for having me doing a workshop, and to everyone who attended to hear me rambling about analog video!
See you again in ~6 weeks for @superbooth_berlin !
(Now that I’m back, production of Détail will start soon, ETA: end of April)
#videoart #glitchart #analogglitch #analogvideo #eurorack #syntoniestable #syntoniecbv001 #syntoniedetail #syntonie
