Description

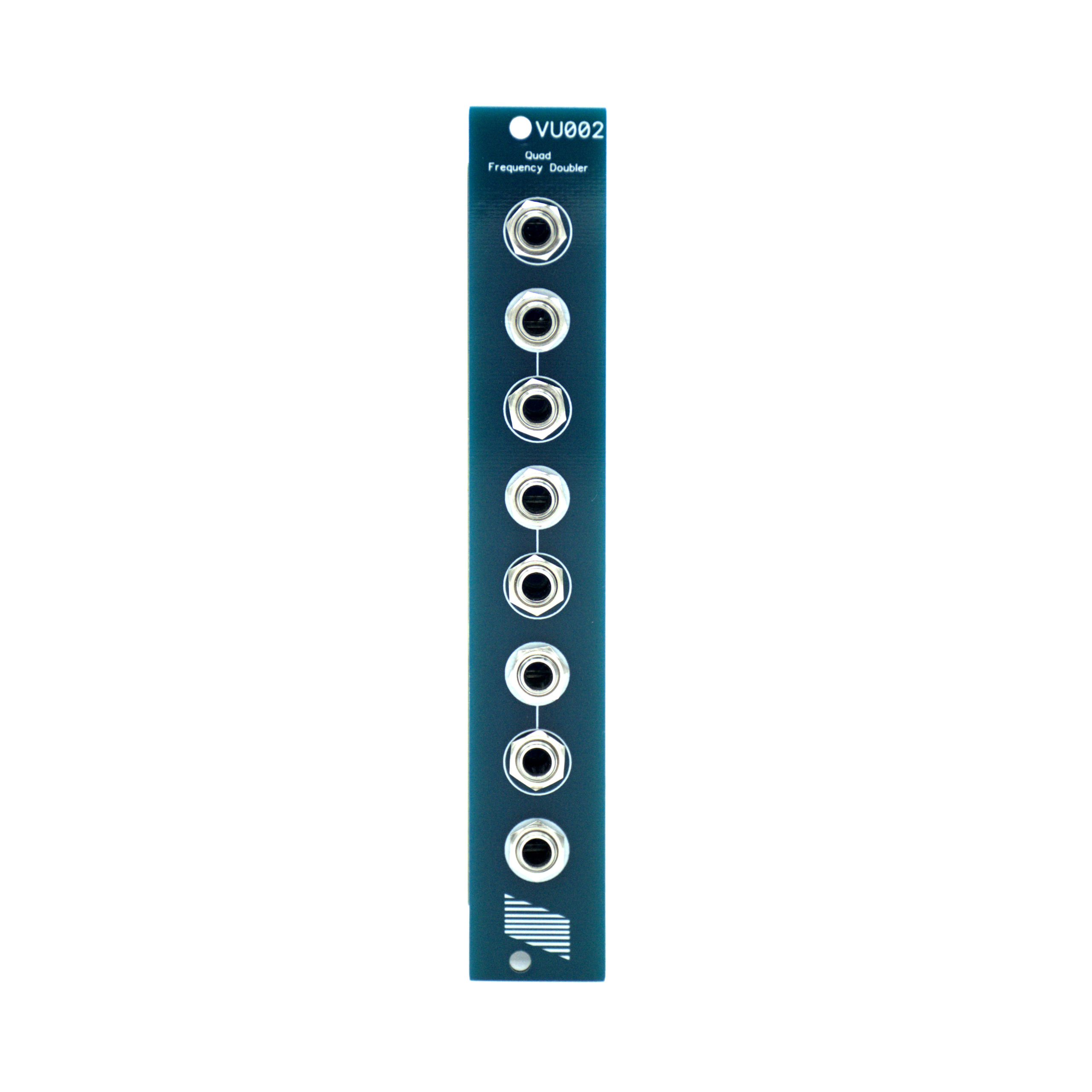

Quad frequency doubler: each stage double the signal frequency and are chained together to multiply the signal at the input by 16. Switching jacks allow to break the connection between each stage to use them individually.
One stage can be used to:
– convert a ramp/saw signal to triangle signal
– multiply a triangle signal by a factor of 2
– multiply a sine signal by a factor of 2 (output sine is glitched)
– solarize a video signal
Inputs: 0-1V, 100kohms
Outputs: 0-1V, 499 ohms
PCB Set: includes Main/Control/Power/Panel PCBs.
– 4HP
– 38mA +12V
– 37mA -12V
– 0mA +5V
– 50mm deep
