Description

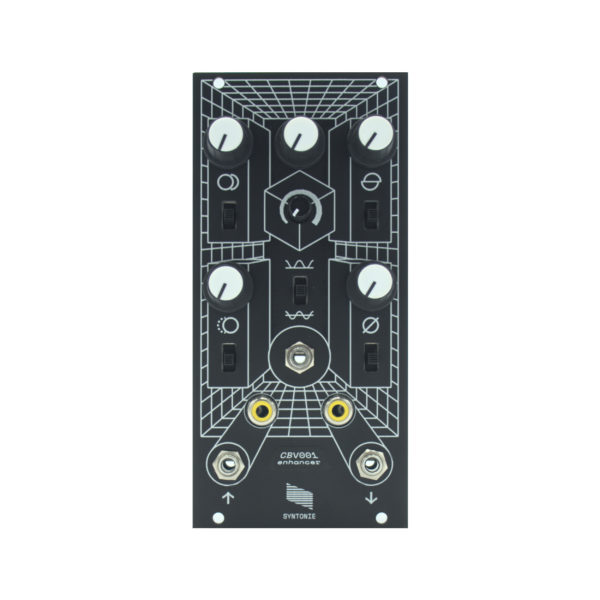

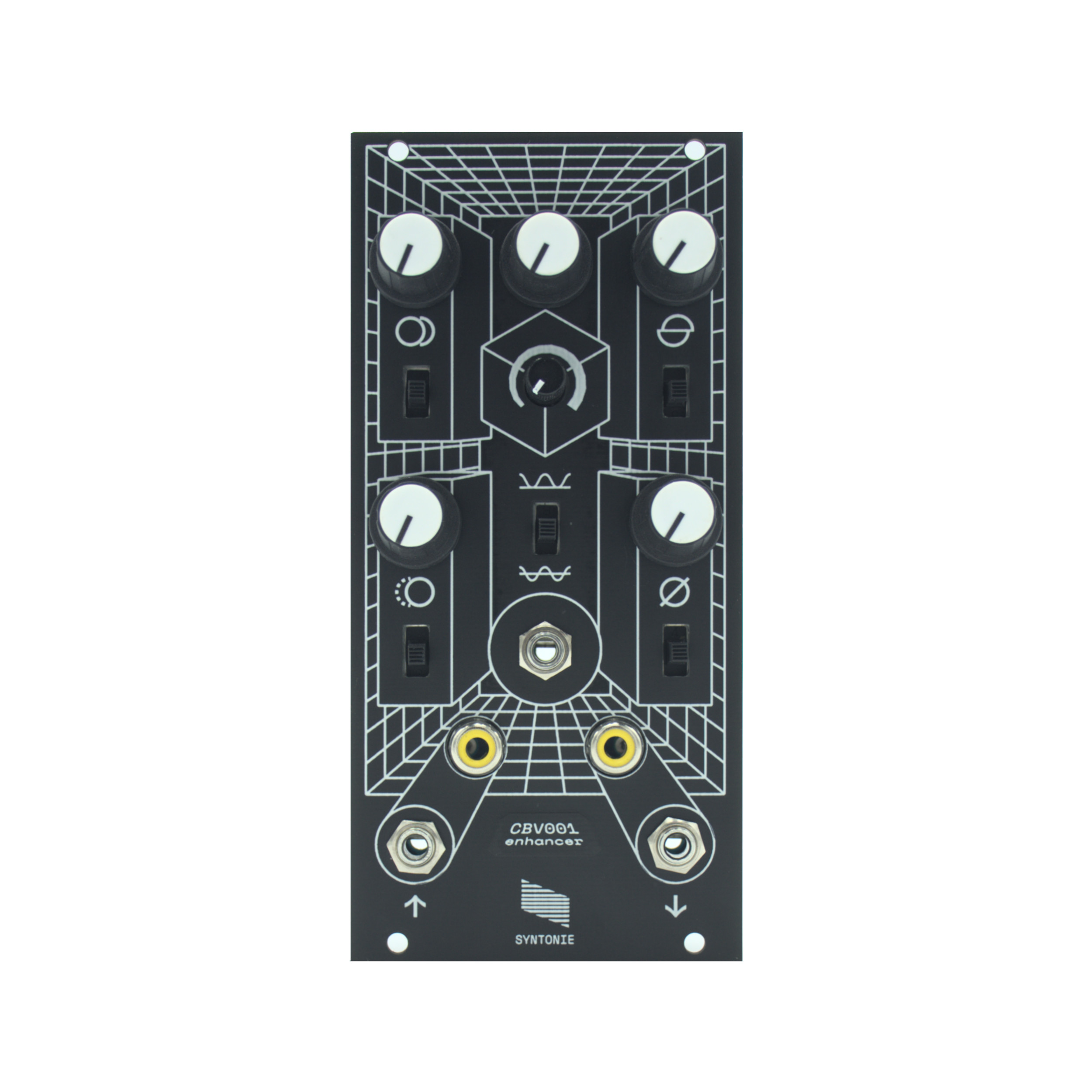

CBV001 is a circuit bent video enhancer meant to process Composite video. It generates effects ranging from soft color shifts to heavy distortion, with a CV input and attenuator allowing to control the contrast with an external control voltage.
NTSC/PAL compatible
SMD PCB Set includes the main board with pre-populated SMD components and front panel, all the other parts needs to be sourced and assembled by the user. BOM is available here.
– 12HP
– 30mA +12V
– 0mA -12V
– 0mA +5V
– 25mm deep
#CBV001 on Instagram
