AVE MOD V2
This circuit is one the first I experimented with. After modifying a few video devices, I wanted to work on a little standalone glitch circuit, this is where the search for video schematic started.
I started taking interest in electronic with audio, so I was quite used to find information about guitar pedals, synthesizers, studio gear, but there’s much less about analog video on the internet.
However I found this circuit traced by Philip Baljeu from an Archer Video Enhancer/Sound Mixer and posted on the electro-music forum.

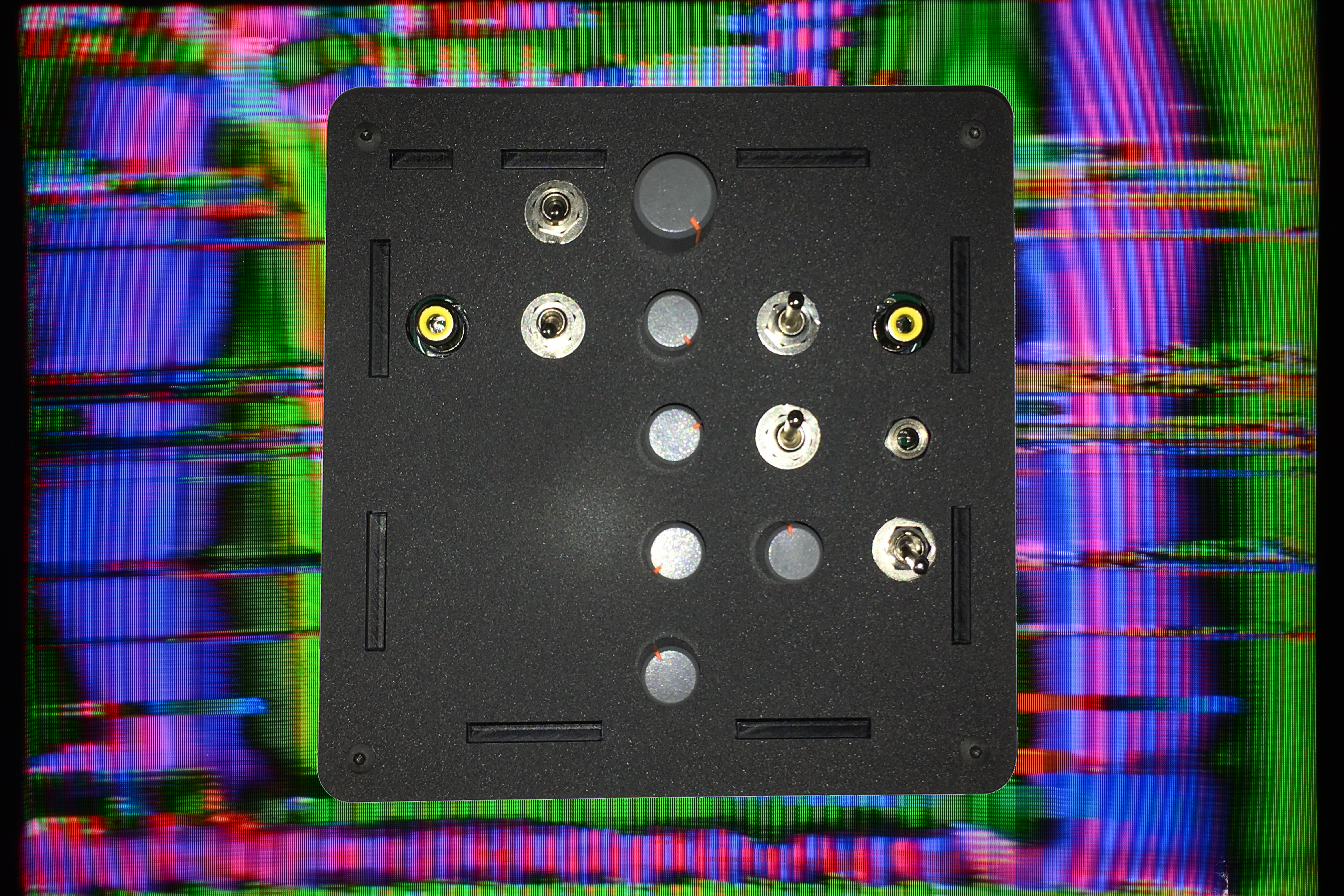

Here’s the result, it adds 5 potentiometer, 4 switches and audioreactivity so the circuit can react with an external audio signal.
The circuit is PAL/NTSC compatible, it’s powered by either a 9V battery or a 9V DC power supply and works best with a CRT TV. US PSU
Circuit boards, kits and assembled circuits are now available through the store of the website.
Instagram posts featuring #avemod
Posted monoskkop
• • • • •
The Field
#creativecodeart #mnskp #livevisuals #glitchvideo #glitchartistcollective #databending #datamoshing #diyelectronics #distortion #electronicart #videoart #pixelsorting #videoperformance #experimentalart #newmediaart #avemod #galleryart #irfanbrkovic #analogvisuals #modul8 #newaesthetic #analogvideo #tachyonsplus #videofeedback #videocircuits #videosynth #circuitbending #vhs #crtmonitor #new_media_art
May 9
In combination with Entrée and Sortie, Seuils makes for a nice coloriser by processing R, G and B channels from an external video source.
Entrée converts the external Component video signal to RGB, so it can be processed by Seuils, and Sortie encodes the resulting RGB back to Component.
Patching feedback from Seuils outputs back into its CV input generates glitchy effects like ringing and/or clipping.
Recorded in Component 720p60.
#analogvideo #videoprocessing #glitchart #analogglitch #eurorack #syntonieentree #syntonieseuils #syntoniesortie #syntonie
Dec 17
Seuils is back in stock!
Here, it is used to modulate Stable parameters, with Stable pre-proc output going to Seuils inputs, making this keyed/clipped-like effect. Stable post-proc output is going into Seuils CV to add some feedback, with Seuils attenuverters controlling the amount of feedback.
Recorded in Composite NTSC/480i59.94.
#analogvideo #videoprocessing #glitchart #analogglitch #eurorack #syntoniestable #syntonieseuils #syntonie
Dec 15
Rare picture of myself in my natural habitat, staring (and probably cussing) at an oscilloscope.
Went into a major overhaul of my workspace at the beginning of the year, partitioning it into better defined areas, as well as adding more storage space. Pictured here are the prototyping bench (left) and the assembly bench (right).
(Merci @thom.bret pour la jolie photo!)
#electronics #eurorack #videosynthesis #analogvideo #syntonie
Nov 26
Animate EXP and Solaire are back in stock!
Here is one of my go-to patch: ramps and shapes from Rampes into Cadrans, with amplitude modulation from Animate + Animate EXP to add some motion. Outputs of Cadrans into Solaire, outputs of Solaire into ReverseLandfill Matrix Mixer, encoded in Component 720p60 with Sortie.
(Note that this is the last batch of Animate EXP and it won’t be re-stocked, so probably time to grab one to add some waveforms to your Animate)
#analogvideo #videosynthesis #videoart #modularsynth #eurorack #eurorackmodular #reverselandfillmatrixmixer #syntonierampes #syntonieanimate #syntonieanimateexp #syntoniecadrans #syntoniesolaire #syntoniesortie
#syntonie
Nov 3
Looking for something #unique?? We have that covered at #VapePrescriptions #malibu👊 Spend 100$ with us and get a #free T-shirt!! Everyone loves free #apparel 🙌 #vaperx #vapelife #vapelyfe #vapedeals #amerivape #avemod #manhattan #modlife #turbo #turboatty #certifiedeliquid #cremedelacreme #kiloeliquid #malibuvape #pch #calivapors #calivapers
Apr 19
Stable is back in stock!
I was asked if Cadrans would make a good addition to Stable. While it is probably not as instantly gratifying as other processors like Solaire, Seuils or Isohélie, Cadrans and its amplitude modulation is a good way to modulate how much feedback is applied to Stable.
To do so, Stable post-proc output is connected to Cadrans input, output of Cadrans going back to Stable CV inputs, closing the feedback loop. Then, a pitch sequence from a step sequencer (here a Beatstep Pro) is used as CV for Cadrans, essentially automating the feedback in sync with the music.
Recorded in Composite NTSC/480i59.94
Next on the re-stock list are Solaire, Animate EXP and VU001C.
#analogvideo #videoprocessing #glitchart #analogglitch #eurorack #arturiabeatsteppro #syntoniestable #syntoniecadrans #syntonie
Oct 21
Posterizer lovers and limited color depth enjoyers, Isohélie is back in stock!
Here used to process a picture, with Entrée, Rampes, VH.S Baja, ReverseLandfill Matrix Mixer and Sortie.
Animate EXP, Stable and VU001C restock will follow shortly.
Until next time!
#videoart #analogvideo #vhsbaja #reverselandfillmatrixmixer #syntonieisohelie #syntonieentree #syntonierampes #syntoniesortie #syntonie #eurorack
Oct 1
Sortie is now available!
Same size and features as VU007B, revamped UI for easier format selection/external format display, and DC power input.
Sortie (french for output) is a RGB to Composite/S-video/Component encoder and sync generator supporting SD and HD.
The internal standard is selected by the mean of a push button, with a dedicated LED indicator for each standard.
When an external video signal is present at the sync input of the module, the standard will be selected automatically and the external sync LED indicator will light up.
RCA sync I/O at the rear of the module.
Supports the following standards:
* 576i50 (PAL)
* 480i59.94 (NTSC)
* 576p50
* 480p59.94
* 720p50
* 720p59.94
* 720p60
* 1080i50
* 1080i59.94
* 1080i60
* 1080p23.98
* 1080p24
* 1080p25
* 1080p29.97
* 1080p30
Inputs:
- 0-1V RGB, 100k ohm, jack
- 0-700mV Sync in, 75 ohm, RCA (rear)
Outputs:
- 0-700mV YPbPr/CVBS, 75 ohm, RCA
- 0-700mV S-Video, 75 ohm, Mini Din-4
- 0-700mV Sync out, 75 ohm, RCA (rear)
Specs:
- 8HP
- 130mA +12V
- 0mA -12V
- 0mA +5V
- 42mm deep
Can be powered through standard Eurorack 16pin connector or DC barrel connector.
#videosynthesis #analogvideo #videoart #eurorack #syntoniesortie #syntonie
Sep 8
Sans modifications:
Avec modifications:
